Plastic sheet vacuum thermoforming machine

Machine instructions

Model:VM024

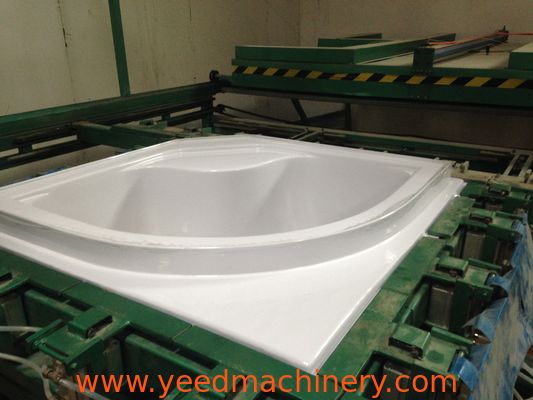

Fast heating single workstation semi-automatic forming machine(also can be made in double workstation), this machine can be used for ABS/acrylic/PMMA/PVC/PS/HDPE/LLDPE bathtubs,wash basins,plastic bags,etc

Semi-automatic forming, it is designed compact and reasonable structure, easy to operate, forming high precision.

1.Heating elements: electric heating evenly
2.Power consumption 42KW(all the heaters are turned on, if the products are small, only open the central heaters)
3.use 380V three phase and N wire electricity power supply, all four wire use 16 square copper wire
4.the temperature setting left,middle,right,automatic control
5.up heating cover furnace pheumatic moving
6.vacuum forming largest area:1500x2000mm
7.electric mould adjustment and pneumatic lift mould sets of pressure 2000KG
8.electric adjust distance 550mm,pneumatic lifting distance 350mm
9.manual vacuum aspiration and exhaust systems
10.cooling fan
11.manual operation control
12.weight:2600kgs
13.dimention:4500x3200mm
14.one hour can make about 16 formings
