acrylic bathtub hot tub SPA vacuum forming mold mould molding

Certification
Good quality bathtub mould for sales
I'm Online Chat Now

acrylic bathtub hot tub SPA vacuum forming mold mould molding

China acrylic bathtub hot tub SPA vacuum forming mold mould molding supplier
acrylic bathtub hot tub SPA vacuum forming mold mould molding supplier acrylic bathtub hot tub SPA vacuum forming mold mould molding supplier acrylic bathtub hot tub SPA vacuum forming mold mould molding supplier acrylic bathtub hot tub SPA vacuum forming mold mould molding supplier acrylic bathtub hot tub SPA vacuum forming mold mould molding supplier acrylic bathtub hot tub SPA vacuum forming mold mould molding supplier acrylic bathtub hot tub SPA vacuum forming mold mould molding supplier

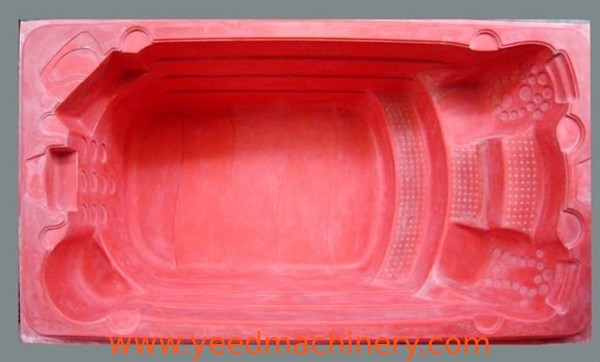

Large Image :  acrylic bathtub hot tub SPA vacuum forming mold mould molding

Product Details:

Place of Origin: CHINA
Brand Name: Yeed
Certification: CE, ISO9001:200
Model Number: MS036

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 780USD
Delivery Time: 30 days
Payment Terms: T/T, D/P, Western Union, MoneyGram
Supply Ability: 10 sets/month
Detailed Product Description



How to make a good acrylic SPA hot tub



First step: prepare for the making machines and molds

The acrylic bathtub making need the devices as follows,



1. acrylic bathtub vacuum forming machines--9800USD/set



acrylic bathtub hot tub SPA vacuum forming mold mould molding acrylic bathtub hot tub SPA vacuum forming mold mould molding



2. bathtub forming molds(good designs)--about 850USD/set



acrylic bathtub hot tub SPA vacuum forming mold mould molding acrylic bathtub hot tub SPA vacuum forming mold mould molding acrylic bathtub hot tub SPA vacuum forming mold mould molding

Made in FRP materials, 2 years guarantee



3.resin mixer(thermostatic resin mixer)--2250USD/piece,simple mixer: 650USD



acrylic bathtub hot tub SPA vacuum forming mold mould molding or acrylic bathtub hot tub SPA vacuum forming mold mould molding



4. resin spray gun with fiber chopper(automatic)--5500USD/set



acrylic bathtub hot tub SPA vacuum forming mold mould molding  acrylic bathtub hot tub SPA vacuum forming mold mould molding  acrylic bathtub hot tub SPA vacuum forming mold mould molding



The details of the spray gun for fiber glass and resin are as follows,

Using material: calcium carbonate(CaCO3) powder,resin,solidifying chemical(catalyzer,catalyst)

1:Maximum injection: 15Kg/min

2:Resin injection: 3.5——5Kg/min

3:Fiber glass: 1.5Kg/min

4:Pressure ratio: 18:1

5:Range of pecentage of solidifying chemical: 0.8——3%

6:Working pressure: 0.3——0.6Mpa

-----------------------------------------------------------------

The spray gun advantages:

1.Accurate ratio control. Catalyst slave pump for exact catalyst ratio ensures the parts cured at desired rate.

2.Environment friendly. Airless spraying decreases the volatilization and less pollution.

3.Cart & System. The whole system is mounted on a cart chassis which makes the equipment moveable, benefits the spraying flexible.

4.Roving management. The roving is guided by the boom crutch to make the roving smooth, less tangling, more uptime.

5.Compact & light weight.

6.American Gun available.

7.One year guarantee.



5. bathtub edge trimming machine--5600USD/set



acrylic bathtub hot tub SPA vacuum forming mold mould molding acrylic bathtub hot tub SPA vacuum forming mold mould molding



Turntable edge trimmer is used for cutting the edge of shower room and bathtub, adapt to bath ABS and Acrylic material.

Technical parameters:

A. Worktable dimension(L*W): 2000*2000or 2400*2400mm;

B. Max. Distance between work table center and vertical arm: 1000mm;

C. Mitsubishi Transducer control speed: 0-3r/min;

D. The data of cutting height is shown by electronic display, the max elevated range of the rick arm is 40-400mm;

E. Dimension of grinding wheel common used: 350*25.4.

F. Main axis rotary speed:3600r/min

G. Main motor power:0.75KW

H. Motor power of worktable:0.37KW

I. Power of tumbler(moving up and down):0.37KW

J. Working air pressure:0.25-0.45MPA

K. Overall dimension(L*W*H):3500mm*3000mm*3000mm

L. Weight:1400KG



6.bathtub making line conveyor





Second step: prepare for the bathtub making materials:

The acrylic bathtub need the materials as follows,



1. Acrylic sheets(you also can choose acrylic, ABS composite sheets)
The thickness: 2.3mm, 2.5mm, 3mm, 3.2mm3.5mm, 4mm, 4.5mm
Can be with colors
Acrylic sheets looks more bright



acrylic bathtub hot tub SPA vacuum forming mold mould molding   acrylic bathtub hot tub SPA vacuum forming mold mould molding



The acrylic sheets parameters:

Product Paramenters

Material

100% Virgin Misubishi MMA

Imported Color Pasted

UK PILKINGTON Mould

Production Process Cast
Light Transmittance 93%
Thickness 2-40mm
Color Customized(Like White,Black,Red,Orange,Yellow,Blue,Green etc.Over 60+ colors to choose)
Packing Craft Paper Or PE Film
Certification ISO,CE,SGS
Application Bathtub/BathroomAdvertising/Decoration/Furniture/Display Stand/Acrylic Crafts and so on



Size

960*2520,1100*1880,1230*2450,1250*1850,1320*2590,1370*1970,1470*2810,
1540*2460,1550*3050,1560*2550,1630*1730,1690*1910,1700*2450,1730*2530,

1790*2050,1790*1850,1810*1930,1940*1960,1940*2900,1960*2640,1970*2080,

2000*3000,2010*2220,2030*2360,2050*2550,2120*3120,2150*2150,etc.

Support Customized



2. Resin
DC191, to make the reinforcement together with the fiber glass



acrylic bathtub hot tub SPA vacuum forming mold mould molding  acrylic bathtub hot tub SPA vacuum forming mold mould molding

3. Fiber glass
To make the reinforcement together with the resin
Specifications: 300G/M2, 250G/M2, or 400G/M2, or roving fiber



acrylic bathtub hot tub SPA vacuum forming mold mould molding  acrylic bathtub hot tub SPA vacuum forming mold mould molding



4. Stone powder(calcium carbonate powder, CaCO3 powder)
Mixed with resin, as the filling materials for the mixture of the resin and fiber glass reinforcement
With very cheap price, you can buy it in your own country

5. Catylist for the resin chemical action

The blue chemical(mixed with resin and stone powder) and the white chemical(add the white chemical when you want to spray the materials), with these two chemicals, the resin will turn into hard quickly.



  acrylic bathtub hot tub SPA vacuum forming mold mould molding



Third step: connect the mold to the vacuum forming machine and make the vacuum formings,



acrylic bathtub hot tub SPA vacuum forming mold mould molding  acrylic bathtub hot tub SPA vacuum forming mold mould molding  acrylic bathtub hot tub SPA vacuum forming mold mould molding





Fourth step: rough cutting the bathtub edges and make the fiberglass and resin reinforcement:

The bathtub need the 3 layers of resin and fiberglass reinforcement.

The resin will turn into hard about 2 hours later, then can make the edge cutting/trimming.



acrylic bathtub hot tub SPA vacuum forming mold mould molding  acrylic bathtub hot tub SPA vacuum forming mold mould molding  acrylic bathtub hot tub SPA vacuum forming mold mould molding



Fifth step: make the bathtub edge cutting/trimming



acrylic bathtub hot tub SPA vacuum forming mold mould molding  acrylic bathtub hot tub SPA vacuum forming mold mould molding



For acrylic bathtub making skills technical training,

Please contact us:

Leo Wang (Export manager)

Mob/WeChat/WhatsApp/Viber: 0086-13867488227

Address: Yipeng Industrial Zone, Hangzhou City, Zhejiang Province, China

Web:  www.yeedmachinery.com

Email: leo@yeedshower.com / yeedshower@qq.com
