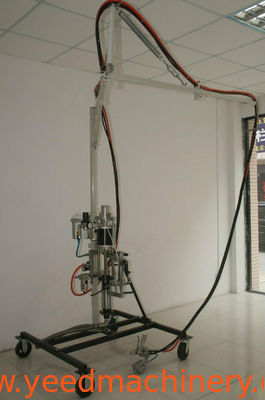

resin spray machine with fiber chopper

Name: resin spray machine with fiber chopper
Brand: Hangzhou Yeed Machinery Co., Ltd
SKU: SG003
Price: 5500 USD
Availability: InStock

Product Details:

Place of Origin:	China,Hangzhou
Brand Name:	Yeed
Certification:	CE
Model Number:	SG003

Detail Information

Place of Origin:

China,Hangzhou

Brand Name:

Yeed

Certification:

Model Number:

SG003

Trading Information

Minimum Order Quantity:

1 set

Price:

5500USD

Packaging Details:

wooden box

Delivery Time:

10 days after receive the down payment

Payment Terms:

T/T,West Union, Paypal

Supply Ability:

10 sets/month

Product Description

The detail information of the resin spray gun with roving fiber chopper are as follows,

The details of the spray gun for fiber glass and resin are as follows,

Using material: calcium carbonate(CaCO3) powder,resin,solidifying chemical(catalyzer,catalyst)
1.Power Ratio: 4:1~11:1
2.Catalyst Range: 0.5%-4.5%
3.Pump Output: Max.4.5L/min
4.Roving output: Max.4.4kg/min
5.Injection Pressure: Max.3 Mpa
6.Air Input: 0.6~0.8Mpa
7.Chopped Roving Length: 30mm
8.Application Material: UP / VE / Roving

Our spray gun is a automatic spray gun.

The fiber & resin spraying machine is multiple-use system for spraying resin and chopped roving synchronously.

Introduction:
The fiber & resin spraying machine is multiple-use system for spraying resin and chopped roving synchronously. The resin and catalyst could be sprayed out respectively by the pump action, and mix together in the air. The spray gun just needs to be cleaned few times, which greatly reduce the cleaning frequency and improve the production speed much.

resin spray machine with fiber chopper

resin spray gun with chop system
