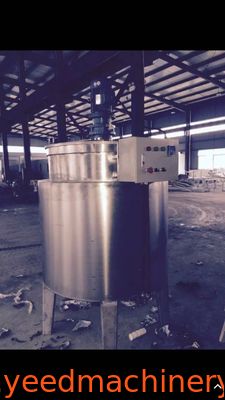

This machine can be used for the mixing for the fiber and resin. The viscosity of resin can be kept by the constant temperature. The proportion of marble flour and
Curing agent must meet strict requirement of technology. Use the special-purpose highly effective mixer for improving the efficiency of mixing, mix the resin and marble flour thoroughly, and reduce non-performing product in filament spreading process, it's more suitable for using the spray gun.
A. Tank material: Steel(optional stainless steel);
B. Mixer volume: 1000L, cover-on top of the tank;
C. Height of the tank bottom to ground: 300mm;
D. 2'' output valve;
E. 2'' drainage valve;
F. Spiral belt type highly effective blender,
G. 3kw reducer motor(3kw high-speed mixer);
H. Electric heating insulation jacket, heating power 9-18kw;
I. Temperature control for electronic constant temperature control;
J. Electrical control system.
