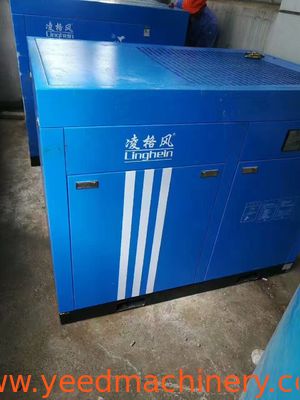

Combined screw air compressor series
Feature
1.Steam turbine compressor are driven by power supply from an industrial compressor,compress the air in an compressing cavity and then pressurize the compressed air.
2.Air compressor ,A precisely-made central bracket is used ti keep the motor aligned permanently with the air end.
3. A high resilient coupling is adopted to make the air compressor operate smoothly,and the elastomer is long in useful life.
4.The discharge pipe is double-wall corrugated pipe and the oil way uses a special high pressure hose which is resistant to temperature up to 125℃.
5.Saving energy and protecting environment.
6.Stable quality and high durability.
Specification
| Model |
YEED-10SA |
YEED-20SA |
YEED-30SA |
| Type of cooling |
water-cooling |
|
Air delivery/
working pressure
(m³/ bar)
|
1.0/8 |
2.2/8 |
3.6/8 |
| 0.85/10 |
2.1/10 |
3.2/10 |
| 0.7/12.5 |
1.8/12.5 |
2.5/12.5 |
| Compressor Power (kw) |
7.5 |
15 |
22 |
| Precision filter model |
END012 |
END024 |
END038 |
| Weight(kg) |
680 |
810 |
930 |
|
Cooling air volume(m3/min)
|
32.5 |
50 |
110 |
| Pipe connection size |
3/4” |
1” |
11/2” |
